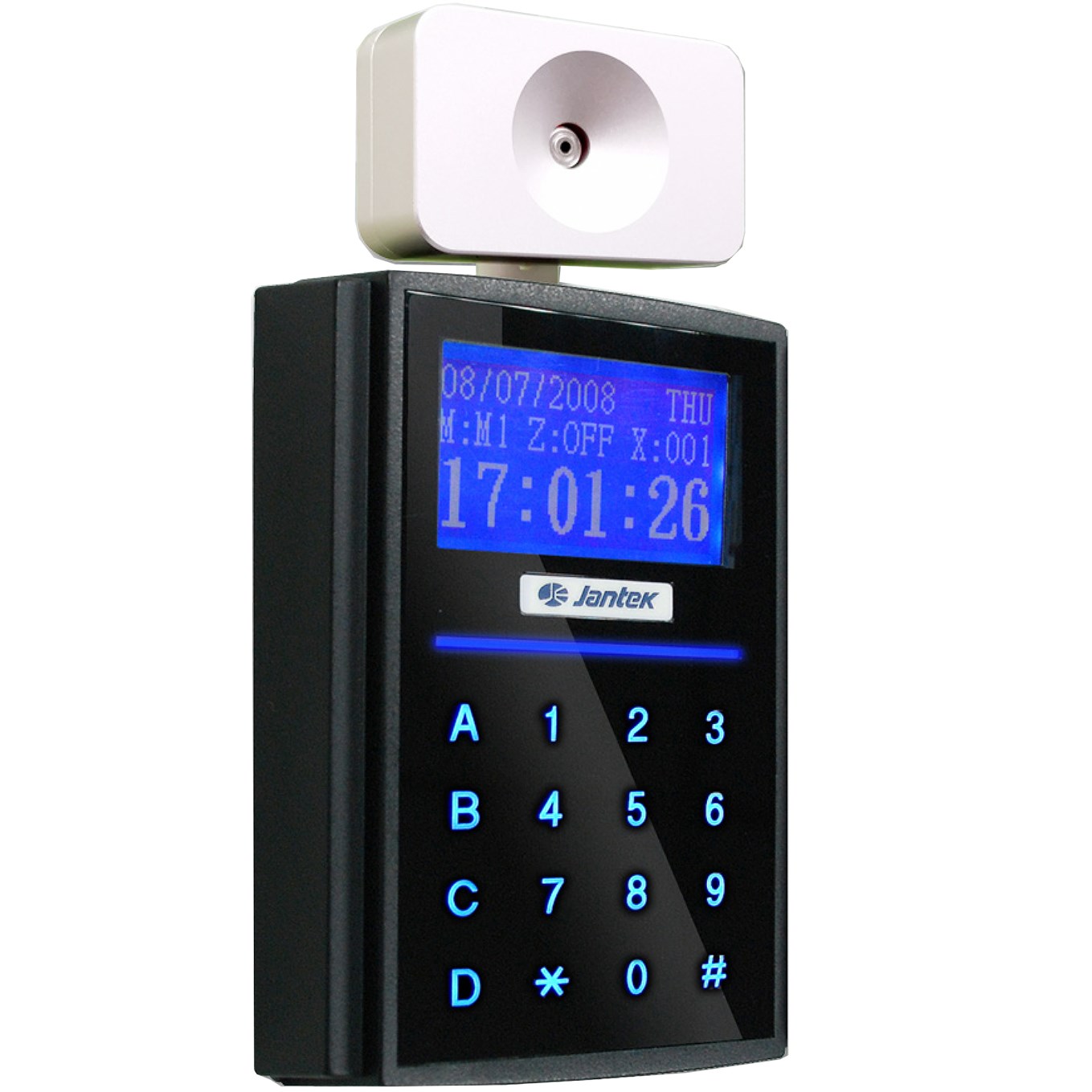

JTT-530 Temperature measuring and proximity card reader

Video

Features

• Temperature measuring results are recorded and can be transmitted to software.
• Adjustable normal body temperature range from 0.0 to 99.9℃.
• Alarm will be triggered when detecting people in fever. Doors won’t open.
• With RS232, RS485 and RS422 interfaces. TCP/IP is optional.

TEMPERATURE MEASURING FEATURES

• Support dot matric temperature measuring method. Dot resolution is 32*32.
• Support multi-dot measuring method.
• Temperature measuring speed is about 0.5~0.8 second.
• Maximum angle of view is 8∘.
• Temperatures vary by approximately ±0.2℃.
• Read range is 0~80 cm. best read range is 2~60 cm.
• Best working temperature is 10~30℃.
• With a RS485 output.

• JTT-530 Temperature measuring and proximity card reader configuration
• Temperature measuring module
• ※Temperature measuring module can be used with other card readers or biometric readers.

Specifications

• Temperature measuring module dimension is 74(L)*46(W)*22(H) mm.
• Reader dimension is 143(L)*103(W)*31(H) mm.
• DC 12V 1A power
