📌Features
General Description:

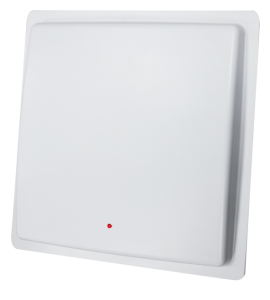

It is a High Performance UHF integrated reader for long range operation. Compact Reader with integrated 12dBi linear polarized UHF Far Field antenna. Based on proprietary efficient digital signal processing algorithm,the reader is capable of up to 15m Read Range and 6m Write Range.
The reader will not cause interference to Wi-Fi network, making it the best choice for deployment in Wi-Fi coverage zone and can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.
LongRangeUHF RFID Reader
1.Passive RFID UHF Reader
2.UHF Reader with built-in antenna, 15meters long range distance reader
3.Compatible with ISO18000-6B& EPC Gen2 protocols
4.Integrative design, water-proof
5.FrequencyRange860MHz-960MHz
Long range UHF RFID Reader Application
a,Logistics and warehouse management:Good flow and warehouse management; The flow management for mail ,parcels,luggage
b,Supply Chain application:Supply Chain Process Application
c,Anti\counterfeiting detection:Using the internal write protection features of tag to identify the truth from falsehood
d,Other application:Will be widely used for club ,library,Time attendance,Dinner management,Pool management
.jpg)
📌Specifications
|
Working frequency
|
ISO902MHz -928MHz, (customized as per countries or regions)
|
|
Customization
|
860MHz-960MHz
|
|
Support protocol
|
ISO18000-6C EPC Gen2 / ISO18000-6B
|
|
SDK
|
Provide SDK, and provide C#, VC and VB, Java, Delphi development routines
|
|
software
|
Provides automatic write and read DEMO software
|
|
Antenna mode
|
12dBi linearly polarization
|
|
Antenna power
|
1W(set by software)
|
|
Read prompt
|
Buzzer and Flashing lights
|
|
Read distance
|
Stable read 15M(tag and environment dependent)
|
|
Data Interface
|
Wiegand26\34,RS232,RS485(TCPIP,WIFI,GPRS,etc can be customed)
|
|
Power Size
|
0dbi-30dbi adjustable
|
|
Input/output interface
|
1 road trigger input
|
|
special treatment
|
subzero treatment
|
|
Power supply
|
AC110-220V/DC+12V
|
|
Dimension
|
450*450*120MM
|
|
Package dimension
|
600mm*480mm*110mm
|
|
Weight
|
4.5Kg
|
|
Package Weight
|
5.5kg
|
|
Working temperature
|
-30°C-+65°C(-49°F-167°F)
|
|
Storage temperature
|
-45°C-+95°C (-58°F-185°F)
|
📌Ordering Information
📌Reference models
| Model |
Picture |
Product Name |
| JST-520 |
 |
Long Range Parking Reader Controller |
| JLR-903 |
.png) |
Mid-distance UHF Integrated Reader |
