TCPIP Converter

📌Features

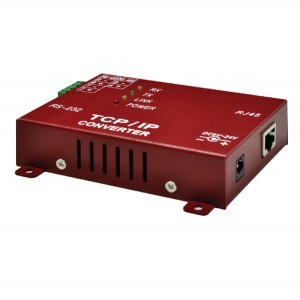

TCP/IP Converter

📌Specifications

Hardware

CPU：32 bit CPU, 80MHz

Memory：4MB FLASH, 8MB SDRAM

Connector Type：DB9 (Male)/ RJ-45

Watch Dog：Support watch Dog, system never hang

Interface

Ethernet：10/100Base-T ( Auto Detecting )

Serial：RS-232/485/422 ,half/full duplex

No. of serial Port：1

Signals：RS-232: TxD, RxD, RTS, CTS, GND

                RS-485 2 wire: A+/B-   RS-422 4 wire: T+/T-, R+/R-

Baud rate：1200 bps ~115.2Kbps

Configuration

Parity Check：None,even,odd,Mark,Space

Data bits：5, 6, 7, 8

Stop bits：1, 2

Flow Control：RTS/CTS

Supported OS

Windows XP, Windows 2000, Windows NT, Windows95/98 ME, Vista

Protocol

TCP, IP, UDP, ARP, DHCP, ICMP、HTTP、DDNS

Management

Support TCP/UDP Server/Client mode

User name & password protected for web management

Built-in Http server for set up and remote management via any browser easily

Power requirement & Environment

Power requirement：DC 9V~24V , Max. 600mA

Operation Temp.：0-55℃

Operation Humidity：5 - 95%RH

Storage Temp：-20-85℃

Size：120 x 75 x 25 mm (W x L x H)

Surge protection：Serial port 15 KV ESD

Magnetic protected：Ethernet port 1.5 KV

Approval：FCC B, CE B
